structured_log_material

A ready-to-use Material 3 in-app log viewer for structured_log, built on structured_log_flutter’s LogViewerController: a live, newest-first list with search, category, and level filtering, a bottom-sheet detail view with full context and copy, and an empty state that distinguishes “no logs yet” from “no logs match the current filter”. Available both as a full screen (MaterialLogViewerPage) and as a plain embeddable widget (MaterialLogViewer) for dropping into existing page chrome — a tab, a side panel, a dialog, …

Status: published on pub.dev (0.1.0). Design reference: the Log Viewer UI Concepts canvas (Material section — structured_log_fluent and structured_log_cupertino are implemented too, from the Fluent/Cupertino sections of the same canvas).

Features

MaterialLogViewer — the log viewer as a plain embeddable widget: a toolbar (search field, pause/resume, clear-all) above category- and level-filter chips and a live newest-first list — no page chrome of its own, so it can be dropped anywhere in an existing layout
MaterialLogViewerPage — a thin Scaffold/AppBar wrapper around MaterialLogViewer for the full-screen case: adds a title (“Logs”) and, when pushed via Navigator, a back button (AppBar’s own)
Adaptive — how the selected entry’s context is shown reacts to the width this widget is actually given (its own constraints, not the window’s): below the master-detail breakpoint (the mobile-style default) tapping a row opens LogEntryDetailSheet as a modal bottom sheet; at or above it, the list and a non-modal LogEntryDetailPanel show side by side instead — Material’s own list-detail layout guidance for tablet and desktop
LogCategoryChips — a category-filter chip row whose options are derived from the distinct category values currently in the buffer; hidden automatically when fewer than two are present
LogEntryTile — one row: level-colored dot, event, formatted time, and a category tag if the entry has one; tinted when it’s the entry shown in an adjacent LogEntryDetailPanel
LogEntryDetailSheet — tap a row (on narrow screens) to see its full context as formatted key/value pairs in a modal bottom sheet, with a “Copy context” action
LogEntryDetailPanel — the same context/copy content as LogEntryDetailSheet, but as a non-modal panel for the wide-screen master-detail split — no drag handle or “Close” button
LogViewerEmptyState — “No logs yet” (nothing captured at all) vs. “No logs match the current filter” (with a “Clear filters” action)
Theme-aware — colors and typography come from Theme.of(context) (light/dark both supported); only the level-indicator palette is fixed (logLevelColor), kept in one place so it can’t drift between widgets

Installation

dependencies:
  structured_log_material: ^0.1.0

Within this monorepo, melos bootstrap resolves both to path dependencies instead:

dependencies:
  structured_log_flutter:
    path: ../structured_log_flutter
  structured_log_material:
    path: ../structured_log_material

Quick Start

import 'package:flutter/material.dart';
import 'package:structured_log/structured_log.dart';
import 'package:structured_log_flutter/structured_log_flutter.dart';
import 'package:structured_log_material/structured_log_material.dart';

void main() {
  final buffer = LogBuffer();
  final controller = LogViewerController(buffer);

  StructlogConfiguration.configure(sinks: [
    LogSink(name: 'viewer', output: buffer.capture),
  ]);

  runApp(MaterialApp(
    home: Builder(
      builder: (context) => Scaffold(
        body: Center(
          child: OutlinedButton(
            onPressed: () => Navigator.of(context).push(
              MaterialPageRoute(
                builder: (_) => MaterialLogViewerPage(controller: controller),
              ),
            ),
            child: const Text('Open log viewer'),
          ),
        ),
      ),
    ),
  ));
}

See example/ for a full runnable app (including web) — run it with flutter run -d chrome from that directory.

To embed the viewer inside existing page chrome instead of giving it the whole screen, use MaterialLogViewer directly:

Row(
  children: [
    Expanded(child: MyAppContent()),
    SizedBox(
      width: 420,
      child: MaterialLogViewer(controller: controller),
    ),
  ],
)

Screenshots

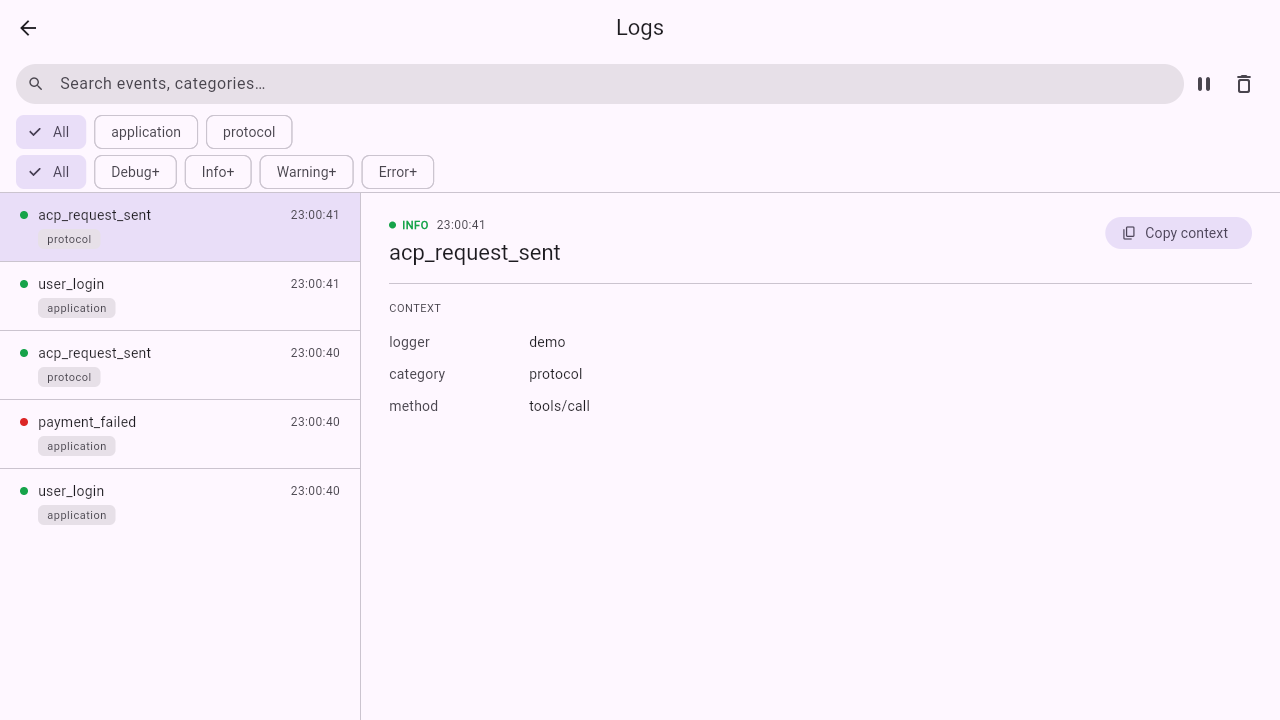

MaterialLogViewerPage as the full screen — master-detail split at this width, list on the left and the selected entry’s full context on the right:

MaterialLogViewerPage: a live list of log entries on the left, filter chips and level filters above it, and the selected entry’s full context with a copy action on the right

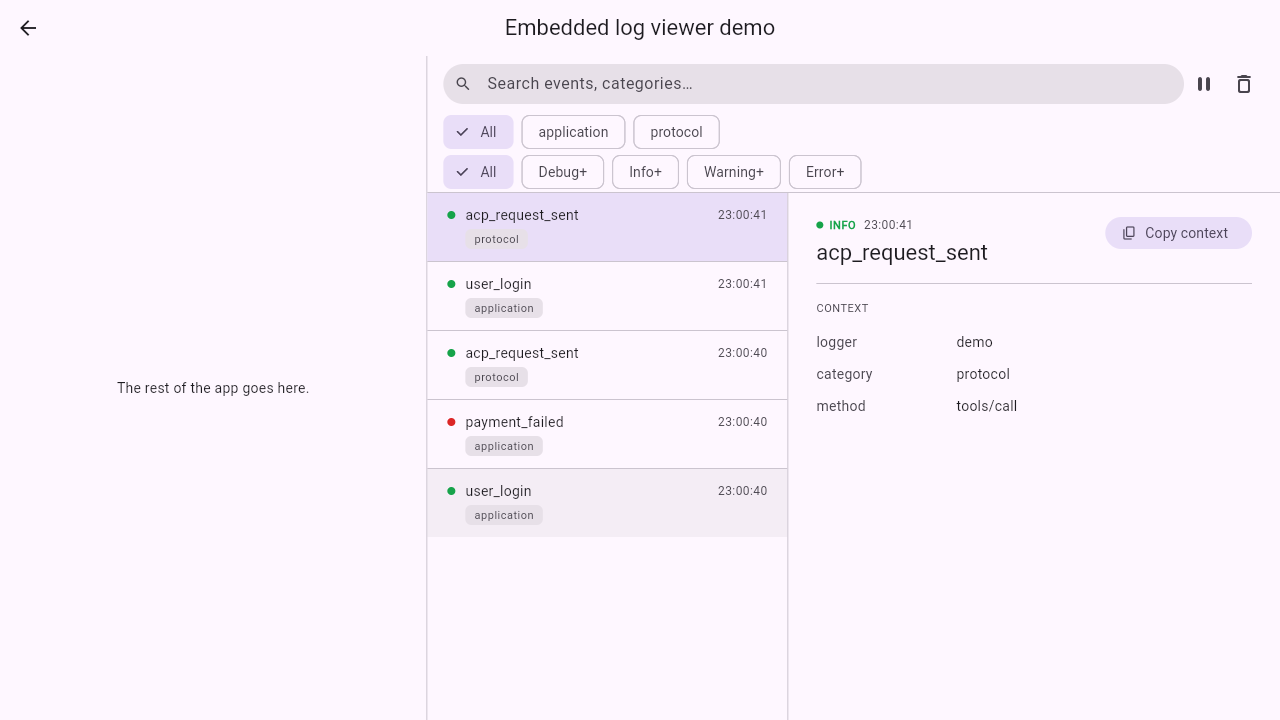

MaterialLogViewer embedded in a side panel next to other app content — the same widget, no page chrome of its own:

MaterialLogViewer docked as a 2 side panel next to placeholder app content, showing the same log list and detail view

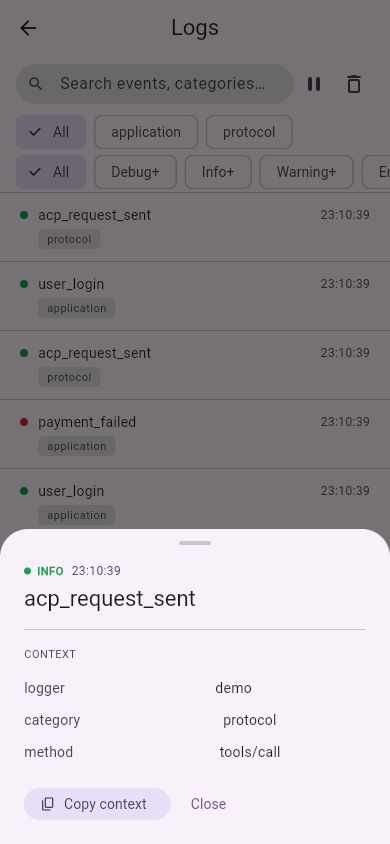

On a phone-width screen, the same page collapses to a list, and tapping an entry opens LogEntryDetailSheet as a modal bottom sheet instead of a side panel:

MaterialLogViewerPage on a narrow, phone-width screen: the log list with a bottom sheet open on top, dimming the list behind it, showing the tapped entry’s full context and a copy action

API Reference

Widget	Description
`MaterialLogViewer({required LogViewerController controller})`	The log viewer as an embeddable widget (no page chrome)
`MaterialLogViewerPage({required LogViewerController controller})`	The full screen
`LogCategoryChips({required LogViewerController controller, String allLabel = 'All'})`	The category-filter chip row
`LogEntryTile({required entry, required onTap, bool selected = false})`	One list row
`LogEntryDetailSheet({required entry})`	The expanded-entry bottom sheet content (narrow screens)
`LogEntryDetailPanel({required entry})`	The expanded-entry non-modal panel content (wide screens)
`LogViewerEmptyState({required hasLogs, required onClearFilters})`	The two-variant empty state
`logLevelColor(LogLevel level, Brightness brightness)`	The canonical level-indicator color — defined once in `structured_log_flutter`, shared by every skin

entry throughout is the Map<String, dynamic> shape structured_log produces directly — no separate typed model.

License

MIT
